Lifting and Handling Equipment for Contractors with special emphasis at safety

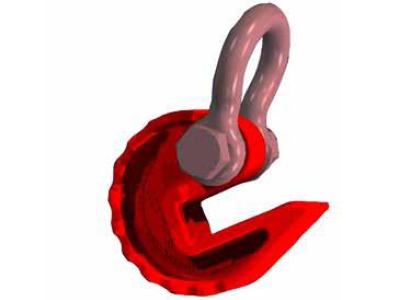

Pipe Lifting Shoe
– designed for handling heavy steel pipes onshore and offshore
The shoes are supplied with bow shackle.
Effective and time saving gear
[/vc_column_text][/vc_column][vc_column width=”1/6″][/vc_column][/vc_row][vc_row][vc_column width=”1/3″][/vc_column][vc_column width=”1/3″][vc_single_image image=”3179″ img_size=”full” alignment=”center” title=”Pipe Lifting Shoe”][/vc_column][vc_column width=”1/3″][/vc_column][/vc_row][vc_row][vc_column width=”1/6″][/vc_column][vc_column width=”2/3″][vc_column_text]
Model Range from 12 to 24 tons Safe Working Load
[/vc_column_text][/vc_column][vc_column width=”1/6″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink”][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][/vc_column][vc_column width=”1/2″][vc_column_text]
Nor-Trade offers Lifting and Handling Equipment for many purposes and with special emphasis on safety
In addition to Pipe Lifting Shoes:
[/vc_column_text][vc_single_image image=”8285″ img_size=”full” alignment=”center” title=”Lifting Gear-Lifting Equipment-Lifting Clamps-Lifting Claws”][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”custom” accent_color=”#dd3333″][/vc_column][/vc_row][vc_row][vc_column width=”1/3″][vc_column_text]
Sizes – Capacities
The shoes are available in three sizes:
- Safe working Load (SWL) 12 tonnes – Weight of shoe and bow shackle: 25 kg
- Safe working Load (SWL) 16 tonnes – Weight of shoe and bow shackle: 38,5 kg
- Safe working Load (SWL) 24 tonnes – Weight of shoe and bow shackle: 67,5 kg
Operation

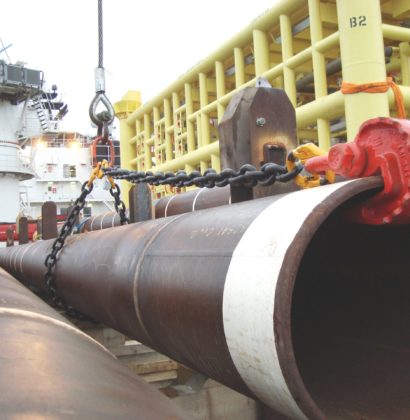

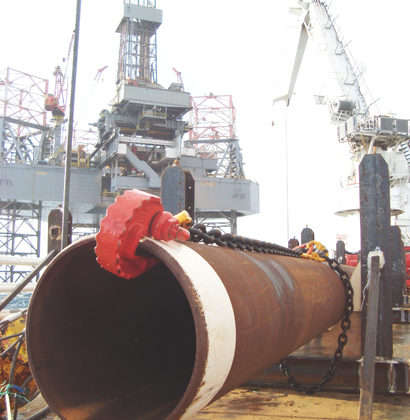

The shoes should be used either in pairs on steel wire, rope or chain slings or with a spreader beam
The total lifting capacity with a shoe of the same size in each end of a pipe will be twice the shoe capacity of a single shoe provided the lift angle between the slings is at least 45 degrees AND the lifting slings are of the same length.
Applicable Lifting Equipment Regulations must always be adhered to.
