Nor-Trade offers Lifting Equipment with a special focus on safety

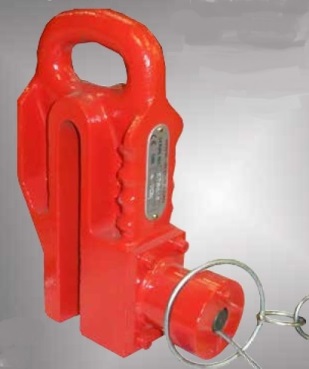

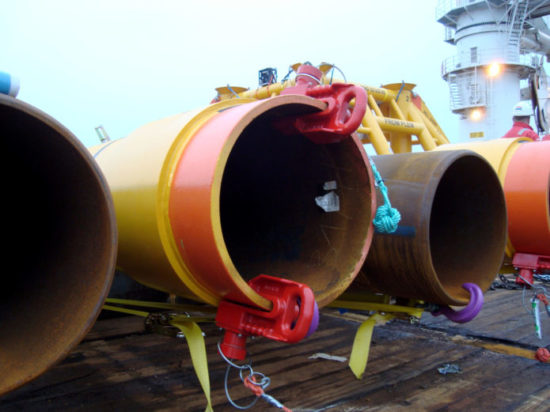

Quick Release Shackle – Pile Pitching Clamp
– a remotely released security lifting shackle for safe lifting of sheet piles, pipes and steel profiles
Effective and time saving gear for Contractors
The Quick Release Shackle reduces the risk by lift, as the quick release system enables the shackle to be remotely released from the often heavy and unmanageable steel structures
[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]
Quick Release Shackles are even available for low-temperature operation down to minus 40 Centigrades.
[/vc_column_text][/vc_column_inner][vc_column_inner][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=”1/6″][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][/vc_column][vc_column width=”1/2″][vc_single_image image=”3648″ img_size=”full” alignment=”center” title=”Quick Release Shackle”][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][/vc_column][vc_column width=”1/2″][vc_column_text]
Model range from 4 tons to 10 tons SWL
For Lifting capacities up to 40 tons, please refer to:
The locking pin of the shackle requires a hole in the item to be lifted
[/vc_column_text][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink”][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][/vc_column][vc_column width=”1/2″][vc_column_text]
Nor-Trade offers Lifting and Handling Equipment for many purposes and with special emphasis on safety.
In addition to Ground Release Shackles:
[/vc_column_text][vc_single_image image=”8285″ img_size=”full” alignment=”center” title=”Lifting Gear-Lifting Equipment-Lifting Clamps-Lifting Claws”][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink”][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][vc_single_image image=”3629″ img_size=”full” alignment=”center” title=”Ground Release Shackle on Pile”][/vc_column][vc_column width=”1/4″][vc_single_image image=”3527″ img_size=”full” alignment=”center” title=”Part Details”][/vc_column][vc_column width=”1/2″][vc_column_text]
Ground Release Shackles – Available sizes
|
Type |
Dimension |
S.W.L. |
Weight |
||
|
A |
B |
C |
tonnes |
kg |
|
|
150/4.0 T |
150 |
30 |
22 |
4.0 |
18 |
|
150/7.5 T |
150 |
30 |
28 |
7.5 |
18 |
|
150/10.0 T |
150 |
30 |
35 |
10.0 |
18 |
|
250/7.5 T |
250 |
30 |
28 |
7.5 |
22 |
|
250/10.0 T |
250 |
30 |
35 |
10.0 |
22 |
A = throat depth (measured from center line of locking pin), B = throat gap, C = diameter of locking pin.
For Safety Shackles with higher lifting capacity, please refer to Ratchet Release Shackles
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/3″][vc_column_text]
Operation
- A rope of sufficient length must be fixed to the pull ring of the extension wire to permit release of the shackle from a remote position.
- With the locking pin in retracted position and the indicator bar protruding, the shackle is slided over the pile.
- Align the locking pin over the lifting hole of the pile and strike the indicator bar to release the retaining mechanism.
- Place the safety ring over the barrel assembly to safeguard against unintentional pull of the release wire.
- With the pile in vertical position, secure the release rope and pitch the pile.
[/vc_column_text][/vc_column][vc_column width=”1/3″][vc_column_text]
Safe Release
- Arrange the pile in the correct position.
- Whip the release rope so the safety ring leaves the barrel assembly.
- Pull firmly the release rope to retract the pin.
The locking mechanism of the shackle will hold it in the retracted position. This is confirmed by the indicator bar protruding from the barrel assembly.
Recommendation: Fix a small magnet
Some contractors fix a small magnet to the end of the rope and place it on the pile. This will stretch the rope along the pile and hinder the rope in flopping around.[/vc_column_text][/vc_column][vc_column width=”1/3″][vc_single_image image=”2309″ img_size=”full” alignment=”center” title=”Ground Release Shackles on a Pile”][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

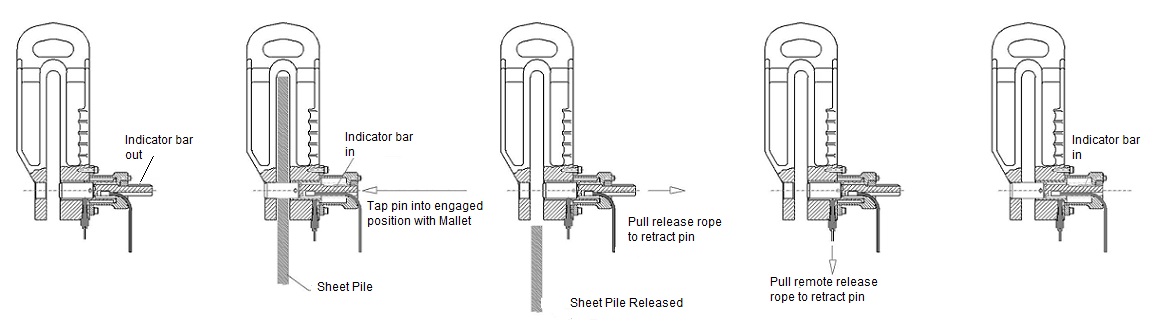

Optional Remote Release Detent kit
With this the shackle can be engaged and released remotely.
