Nor-Trade offers Lifting Equipment with a special focus on safety

Ratchet Release Shackle

– remotely released security lifting shackle for safe lifting of sheet piles, pipes and steel profiles



Effective and time saving gear for Contractors

The Ratchet Release Shackle reduces the risk by lift, as the ratchet system enables the shackle to be remotely released from the often heavy and unmanageable steel structures

[/vc_column_text][/vc_column][vc_column width=”1/6″][/vc_column][/vc_row][vc_row][vc_column width=”1/3″][/vc_column][vc_column width=”1/3″][vc_single_image image=”6488″ img_size=”large” alignment=”center” title=”Ratchet Release Shackle”][/vc_column][vc_column width=”1/3″][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][vc_row_inner][vc_column_inner][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=”1/2″][vc_column_text]

Model Range from 3.5 tons to 40 tons – for subsea application too

The locking pin of the shackle requires a hole in the item to be lifted

[/vc_column_text][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”pink”][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][/vc_column][vc_column width=”1/2″][vc_column_text]

Nor-Trade offers Lifting and Handling Equipment for many purposes and with special emphasis on safety.

In addition to Ratchet Release Shackles:

Ground Release Shackles

Steel Handling Shoes

Sheet Pile Clamps

Pipe Lifting Shoes

Ratchet Beam Shackles

Hydraulic 100 t Shackles

The safe way to lift

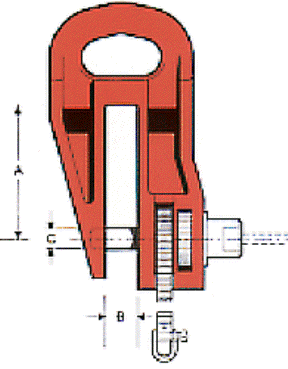

[/vc_column_text][vc_single_image image=”8286″ img_size=”full” alignment=”center” title=”Lifting Gear-Lifting Equipment-Lifting Clamps-Lifting Claws”][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink”][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][vc_single_image image=”3653″ img_size=”315 x 420″ alignment=”center” title=”Ratchet Release Shackle”][/vc_column][vc_column width=”1/4″][vc_single_image image=”3666″ img_size=”315 x 422″ alignment=”center” title=”Main Measurements”][/vc_column][vc_column width=”1/2″][vc_column_text]

Model no. Description Throat SWL Weight A B C
mm Tonnes kg mm mm mm ø
681 150/3.5T 150 3.5 15 158 30 20
683 150/5T 150 5 15 158 30 24
689 150/7.5T 150 7.5 15 158 30 27
687 150/10T 150 10 15 158 30 35
682 250/3.5 250 3.5 19 258 30 20
684 250/5T 250 5 19 258 30 24
686 250/7.5T 250 7.5 19 258 30 27
688 250/10T 250 10 19 258 30 35
692A 300/7.5T 300 7.5 22 303 32 27
693A 300/10T 300 10 22 303 32 35
6961A/A 250/25T 250 25 48 250 46 60
6962A 250/40T 250 40 67 239 50 60

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink”][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][vc_column_text]

Installation

Ropes of sufficient length must be fixed to the pull rings of the ratchet belt to permit release of the shackle from the actual remote position.

With the release nut turned to open position and the indicator bar protruding, slide the shackle over the pile.

Align the locking pin over the prepared lifting hole of the pile and while pressing the ratchet pawl down with the thumb of the one hand turn the release nut out of the shackle with the other hand until stop.

The pile may now be lifted.[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_column_text]

Release

When the pile is correctly positioned, the shackle is released by pulling the release ropes one way and then the other way five to six times.

The stroke of the pull is limited by the D-shackles in the ends of the toothed belt.

Recommendation: Fix small magnets

It can be a help to fix small magnets to the rope ends and place them on the pile. This will stretch the ropes along the pile and hinder them in flopping around.[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”3651″ img_size=”315 x 370″][/vc_column][vc_column width=”1/4″][vc_single_image image=”3650″ img_size=”315 + 370″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink”][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][/vc_column][vc_column width=”1/2″][vc_video link=”https://youtu.be/ve5ot0zYlZ8″ align=”center” title=”Video: Ratchet Release Shackle”][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”juicy_pink” border_width=”2″][/vc_column][/vc_row]
